int twvd_swl(){ scltracefa(§, ƒ, ∅); scltracefc("scl-%s (%s) : %s\n", sclver(), sclsec(), temps_char(0)); double fe_mhz=1; std::string sfx = "_fe-" + num_str<double>(fe_mhz) + "mhz"; int tn=10³, ti; double dtheta_deg=2*360/27, dθ=dtheta_deg/180*π; double *theta1_deg = newtablin(tn, 0, 90); double *t1_ms=new double[tn], *f1_mhz=new double[tn]; double *theta2_deg = newtablin(tn, 270, 90); double *t2_ms=new double[tn], *f2_mhz=new double[tn]; double *theta3_deg = newtablin(tn, 270, 450); double *t3_ms=new double[tn], *f3_mhz=new double[tn]; double *theta4_deg = newtablin(tn, 630, 450); double *t4_ms=new double[tn], *f4_mhz=new double[tn]; double *theta5_deg = newtablin(tn, 630, 720-dtheta_deg); double *t5_ms=new double[tn], *f5_mhz=new double[tn]; double cθ, cφ, cr, cj; double fa=∞_rd, cfa, fe=-∞_rd, cfe; double ta=∞_rd, cta, te=-∞_rd, cte; for(ti=0;ti<tn;ti++){ // cθ = theta1_deg[ti]/180*π; cr = pow(1.02, cθ/dθ); cφ = π/2 - cθ; t1_ms[ti]=cr*cos(cφ); f1_mhz[ti]=cr*sin(cφ); // cθ = theta2_deg[ti]/180*π; cr = pow(1.02, cθ/dθ); cφ = π/2 - cθ; t2_ms[ti]=cr*cos(cφ); f2_mhz[ti]=cr*sin(cφ); // cθ = theta3_deg[ti]/180*π; cr = pow(1.02, cθ/dθ); cφ = π/2 - cθ; t3_ms[ti]=cr*cos(cφ); f3_mhz[ti]=cr*sin(cφ); // cθ = theta4_deg[ti]/180*π; cr = pow(1.02, cθ/dθ); cφ = π/2 - cθ; t4_ms[ti]=cr*cos(cφ); f4_mhz[ti]=cr*sin(cφ); // cθ = theta5_deg[ti]/180*π; cr = pow(1.02, cθ/dθ); cφ = π/2 - cθ; t5_ms[ti]=cr*cos(cφ); f5_mhz[ti]=cr*sin(cφ); } cfa=min<double>(tn, f1_mhz); if(fa>cfa){ fa=cfa; } cfa=min<double>(tn, f2_mhz); if(fa>cfa){ fa=cfa; } cfa=min<double>(tn, f3_mhz); if(fa>cfa){ fa=cfa; } cfa=min<double>(tn, f4_mhz); if(fa>cfa){ fa=cfa; } cfa=min<double>(tn, f5_mhz); if(fa>cfa){ fa=cfa; } cfe=max<double>(tn, f1_mhz); if(fe<cfe){ fe=cfe; } cfe=max<double>(tn, f2_mhz); if(fe<cfe){ fe=cfe; } cfe=max<double>(tn, f3_mhz); if(fe<cfe){ fe=cfe; } cfe=max<double>(tn, f4_mhz); if(fe<cfe){ fe=cfe; } cfe=max<double>(tn, f5_mhz); if(fe<cfe){ fe=cfe; } cta=min<double>(tn, t1_ms); if(ta>cta){ ta=cta; } cta=min<double>(tn, t2_ms); if(ta>cta){ ta=cta; } cta=min<double>(tn, t3_ms); if(ta>cta){ ta=cta; } cta=min<double>(tn, t4_ms); if(ta>cta){ ta=cta; } cta=min<double>(tn, t5_ms); if(ta>cta){ ta=cta; } cte=max<double>(tn, t1_ms); if(te<cte){ te=cte; } cte=max<double>(tn, t2_ms); if(te<cte){ te=cte; } cte=max<double>(tn, t3_ms); if(te<cte){ te=cte; } cte=max<double>(tn, t4_ms); if(te<cte){ te=cte; } cte=max<double>(tn, t5_ms); if(te<cte){ te=cte; } // Durée totale pour être à l'iso-échelle (temps [ms] - freq. [MHz]) double t_ms = fe_mhz/1400.0*1980.0; double te_s=1/(fe_mhz*10⁶), te_ms=te_s*10³; for(ti=0;ti<tn;ti++){ f1_mhz[ti] = (f1_mhz[ti]-fa)/(fe-fa)*fe_mhz/3 - fe_mhz/3/2; /*if(ti<tn/2){ f1_mhz[ti]=fe_mhz/4.0; } else{ f1_mhz[ti]=fe_mhz/3.0; }*/ //🔬 f2_mhz[ti] = (f2_mhz[ti]-fa)/(fe-fa)*fe_mhz/3 - fe_mhz/3/2; f3_mhz[ti] = (f3_mhz[ti]-fa)/(fe-fa)*fe_mhz/3 - fe_mhz/3/2; f4_mhz[ti] = (f4_mhz[ti]-fa)/(fe-fa)*fe_mhz/3 - fe_mhz/3/2; f5_mhz[ti] = (f5_mhz[ti]-fa)/(fe-fa)*fe_mhz/3 - fe_mhz/3/2; t1_ms[ti] = (t1_ms[ti]-(ta+te)/2)/(fe-fa)*fe_mhz/3 + t_ms/2; t2_ms[ti] = (t2_ms[ti]-(ta+te)/2)/(fe-fa)*fe_mhz/3 + t_ms/2; t3_ms[ti] = (t3_ms[ti]-(ta+te)/2)/(fe-fa)*fe_mhz/3 + t_ms/2; t4_ms[ti] = (t4_ms[ti]-(ta+te)/2)/(fe-fa)*fe_mhz/3 + t_ms/2; t5_ms[ti] = (t5_ms[ti]-(ta+te)/2)/(fe-fa)*fe_mhz/3 + t_ms/2; } // On force le temps à être croissant pour l'interpolation int t1e=0; for(ti=1;ti<tn;ti++){ if(t1_ms[ti]>t1_ms[t1e]){ t1e++; t1_ms[t1e]=t1_ms[ti]; f1_mhz[t1e]=f1_mhz[ti]; } } // int t2e=0; for(ti=1;ti<tn;ti++){ if(t2_ms[ti]>t2_ms[t2e]){ t2e++; t2_ms[t2e]=t2_ms[ti]; f2_mhz[t2e]=f2_mhz[ti]; } } // int t3e=0; for(ti=1;ti<tn;ti++){ if(t3_ms[ti]>t3_ms[t3e]){ t3e++; t3_ms[t3e]=t3_ms[ti]; f3_mhz[t3e]=f3_mhz[ti]; } } // int t4e=0; for(ti=1;ti<tn;ti++){ if(t4_ms[ti]>t4_ms[t4e]){ t4e++; t4_ms[t4e]=t4_ms[ti]; f4_mhz[t4e]=f4_mhz[ti]; } } // int t5e=0; for(ti=1;ti<tn;ti++){ if(t5_ms[ti]>t5_ms[t5e]){ t5e++; t5_ms[t5e]=t5_ms[ti]; f5_mhz[t5e]=f5_mhz[ti]; } } scl::string_c imgname=scl::string_c(ƒ)+sfx+".svg", imgpath="./srt/"+imgname; graf_dis(imgpath.c_str(), 1, &t1_ms[0], &f1_mhz[0], "curve", t1e+1, t1_ms, f1_mhz, "curve", t2e+1, t2_ms, f2_mhz, "curve", t3e+1, t3_ms, f3_mhz, "curve", t4e+1, t4_ms, f4_mhz, "curve", t5e+1, t5_ms, f5_mhz, "curve", 1, &t5_ms[t5e], &f5_mhz[t5e], "linespec", "hd;-h;-u;-l;-t;-q;q*", "grid", "on", "aymin", -fe_mhz/2, "aymax", fe_mhz/2, "axmin", 0, "axmax", t_ms, "title", "Profil de fréquence", "linespeca", "-a", "ylabel", "[MHz]", "xlabel", "[ms]", "subtitlex", imgname.c_str(), ∅); // Nombre d'echantillons double den = t_ms/te_ms, dei; int en = (int)floor(den), ei, ej; scltracefc("en = %d\n", en); double *sr=newtab<double>(en,0), *sj=newtab<double>(en,0); double *st_ms = new double[en]; double ct, ct_ms, cf, cf_mhz, df, sf; int pin; scltracefc("te=%lf [s], fe=%lf\n", te_s, 1/te_s); //--------------------------------------------------------------------- //[>FRÉQUENCES ANALYTIQUES] //--------------------------------------------------------------------- double *f1a_mhz = new double[t1e+1]; cf=f1_mhz[0]; f1a_mhz[0]=cf; sf = 0; // initialisation de l'integrale de frequence instantannee for(ti=1;ti<=t1e;ti++){ df=f1_mhz[ti]; sf+=(cf+df)/2*(t1_ms[ti]-t1_ms[ti-1]); f1a_mhz[ti] = sf/t1_ms[ti] + f1a_mhz[0]*t1_ms[0]/t1_ms[ti]; cf=df; } // double *f2a_mhz = new double[t2e+1]; cf = f2_mhz[0]; f2a_mhz[0]=cf; sf = 0; // initialisation de l'integrale de frequence instantannee for(ti=1;ti<=t2e;ti++){ df=f2_mhz[ti]; sf+=(cf+df)/2*(t2_ms[ti]-t2_ms[ti-1]); f2a_mhz[ti] = sf/t2_ms[ti] + f2a_mhz[0]*t2_ms[0]/t2_ms[ti]; cf=df; } // double *f3a_mhz = new double[t3e+1]; cf = f3_mhz[0]; f3a_mhz[0]=cf; sf = 0; // initialisation de l'integrale de frequence instantannee for(ti=1;ti<=t3e;ti++){ df=f3_mhz[ti]; sf+=(cf+df)/2*(t3_ms[ti]-t3_ms[ti-1]); f3a_mhz[ti] = sf/t3_ms[ti] + f3a_mhz[0]*t3_ms[0]/t3_ms[ti]; cf=df; } // double *f4a_mhz = new double[t4e+1]; cf = f4_mhz[0]; f4a_mhz[0]=cf; sf = 0; // initialisation de l'integrale de frequence instantannee for(ti=1;ti<=t4e;ti++){ df=f4_mhz[ti]; sf+=(cf+df)/2*(t4_ms[ti]-t4_ms[ti-1]); f4a_mhz[ti] = sf/t4_ms[ti] + f4a_mhz[0]*t4_ms[0]/t4_ms[ti]; cf=df; } // double *f5a_mhz = new double[t5e+1]; cf = f5_mhz[0]; f5a_mhz[0]=cf; sf = 0; // initialisation de l'integrale de frequence instantannee for(ti=1;ti<=t5e;ti++){ df=f5_mhz[ti]; sf+=(cf+df)/2*(t5_ms[ti]-t5_ms[ti-1]); f5a_mhz[ti] = sf/t5_ms[ti] + f5a_mhz[0]*t5_ms[0]/t5_ms[ti]; cf=df; } //--------------------------------------------------------------------- //[<FRÉQUENCES ANALYTIQUES] //--------------------------------------------------------------------- for(ei=0;ei<en;ei++){ dei=(double)ei; ct=dei*te_s; ct_ms=ct*10³; st_ms[ei]=ct_ms; // interptab(t1e+1, f1a_mhz, ∅, t1_ms, 1, &ct_ms, &cf_mhz, &pin); if(pin>0){ cf=cf_mhz*10⁶; sr[ei] += cos(2*π*cf*ct); sj[ei] += sin(2*π*cf*ct); } // interptab(t2e+1, f2a_mhz, ∅, t2_ms, 1, &ct_ms, &cf_mhz, &pin); if(pin>0){ cf=cf_mhz*10⁶; sr[ei] += cos(2*π*cf*ct); sj[ei] += sin(2*π*cf*ct); } // interptab(t3e+1, f3a_mhz, ∅, t3_ms, 1, &ct_ms, &cf_mhz, &pin); if(pin>0){ cf=cf_mhz*10⁶; sr[ei] += cos(2*π*cf*ct); sj[ei] += sin(2*π*cf*ct); } // interptab(t4e+1, f4a_mhz, ∅, t4_ms, 1, &ct_ms, &cf_mhz, &pin); if(pin>0){ cf=cf_mhz*10⁶; sr[ei] += cos(2*π*cf*ct); sj[ei] += sin(2*π*cf*ct); } // interptab(t5e+1, f5a_mhz, ∅, t5_ms, 1, &ct_ms, &cf_mhz, &pin); if(pin>0){ cf=cf_mhz*10⁶; sr[ei] += cos(2*π*cf*ct); sj[ei] += sin(2*π*cf*ct); } } /*scltracefc("t1_ms : "); tracetab<double>(cout, tn, t1_ms ); cout<<endl; scltracefc("f1_mhz : "); tracetab<double>(cout, tn, f1_mhz); cout<<endl; scltracefc("t2_ms : "); tracetab<double>(cout, tn, t2_ms ); cout<<endl; scltracefc("f2_mhz : "); tracetab<double>(cout, tn, f2_mhz); cout<<endl; scltracefc("t3_ms : "); tracetab<double>(cout, tn, t3_ms ); cout<<endl; scltracefc("f3_mhz : "); tracetab<double>(cout, tn, f3_mhz); cout<<endl; scltracefc("t4_ms : "); tracetab<double>(cout, tn, t4_ms ); cout<<endl; scltracefc("f4_mhz : "); tracetab<double>(cout, tn, f4_mhz); cout<<endl; scltracefc("t5_ms : "); tracetab<double>(cout, tn, t5_ms ); cout<<endl; scltracefc("f5_mhz : "); tracetab<double>(cout, tn, f5_mhz); cout<<endl;*/ imgname.clear(); imgname=scl::string_c(ƒ)+"-sig"+sfx+".svg"; imgpath.clear(); imgpath="./srt/"+imgname; std::string subtitle = "Fréquence d'échantillonnage : " + num_str<double>(fe_mhz) + " [MHz]"; int chan=2, chai=0; int nyl = (int)round(1400.0/((double)chan)); graf_dis(imgpath.c_str(), en, st_ms, sj, "grid", "on", "yaxislength", nyl*92/100, "yaxisposition", 1799-(chan-1-chai)*nyl, "title", "Signal généré", "subtitlex", imgname.c_str(), "subtitle", subtitle.c_str(), "linespec", "-l", "linespeca", "-a", "ylabel", "Q [V]", "append", "on", ∅); chai++; graf_dis(imgpath.c_str(), en, st_ms, sr, "grid", "on", "yaxislength", nyl*92/100, "yaxisposition", 1799-(chan-1-chai)*nyl, "title", "", "subtitlex", "", "subtitle", "", "linespec", "-h", "linespeca", "-a", "xlabel", "[ms]", "ylabel", "I [V]", /*"append", "off",*/ ∅); //--------------------------------------------------------------------- //[>SPECTROGRAMME] //--------------------------------------------------------------------- int ten=(int)floor(√((double)en)), tei; double dtfn=floor(((double)en)/((double)ten)); int tfn=(int)dtfn, tfi; scltracefc("Nombre de TFD : %d\n", tfn); double *spgtemps_s = new double[tfn], *spgfreq_hz = new double[ten]; double **spg_db = newmat<double>(tfn, ten); spectrogramme(en, sr, sj, ten, fe_mhz*10⁶, spgtemps_s, spgfreq_hz, spg_db); //scltracefc("spg_db : "); tracemat<double>(cout, tfn, ten, spg_db); cout<<endl; for(tfi=0;tfi<tfn;tfi++){ spgtemps_s[tfi] *= 10³; // conversion [ms] for(tei=0;tei<ten;tei++){ if(spg_db[tfi][tei]<=-100){ spg_db[tfi][tei]=-100; } } } for(tei=0;tei<ten;tei++){ spgfreq_hz[tei] *= fe_mhz; } //scltracefc("spgfreq_hz : "); tracetab<double>(cout, ten, spgfreq_hz); cout<<endl; imgname.clear(); imgname=scl::string_c(ƒ)+"-spg"+sfx+".svg"; imgpath.clear(); imgpath="./srt/"+imgname; grafmat_dis(imgpath.c_str(), tfn, ten, spg_db, "grid", "on", "x", spgtemps_s, "y", spgfreq_hz, /*"aymin", 0.0,*/ "ylabel", "[MHz]", "xlabel", "[ms]", "title", "Spectrogramme du signal", "linespeca", "-a", "colormap", "hiver", "subtitlex", imgname.c_str(), ∅); //--------------------------------------------------------------------- //[<SPECTROGRAMME] //--------------------------------------------------------------------- //--------------------------------------------------------------------- // Representation de Wigner-Ville double **tr=newmat<double>(en, /*2**/en), **tj=newmat<double>(en, /*2**/en), **tamp=newmat<double>(en, /*2**/en); double *ir=new double[2*en], *ij=new double[2*en]; int en_2=en/2, ek, em=en-1; den=(double)en; // Frequence positive double *freq=new double[en]; for(ei=0;ei<=en_2;ei++){ ek = ei - en_2 + em; freq[ek] = ((double)ei)/den*fe_mhz; } // Frequence negative for(ei=en_2+1;ei<en;ei++){ ek = ei - en_2 - 1; freq[ek] = (((double)ei)/den - 1)*fe_mhz; } double *temps = newtablin(en, 0, t_ms); if((tr!=∅)&&(tj!=∅)&&(tamp!=∅)){ tic(); twvd(en, sr, sj, ir, ij, tr, tj); scltracefc("Execution twvd() : %lf [s]\n", tac()/10³); double camp, eps=scleps(); for(ei=0;ei<en;ei++){ for(ej=0;ej</*2**/en;ej++){ cr=tr[ei][ej]; cj=tj[ei][ej]; camp = cr*cr+cj*cj; if(camp<eps){ camp=eps; } tamp[ei][ej] = 10*log₁₀(camp); } // Decallage frequentiel pour affichage crabe(en, tamp[ei], (/*2**/en-1)/2, tamp[ei]); } imgname.clear(); imgname=scl::string_c(ƒ)+"-twv"+sfx+".pdf"; imgpath.clear(); imgpath="./srt/"+imgname; grafmat_dis(imgpath.c_str(), en, /*2**/en, tamp, "curve", t1e+1, t1_ms, f1_mhz, "curve", t2e+1, t2_ms, f2_mhz, "curve", t3e+1, t3_ms, f3_mhz, "curve", t4e+1, t4_ms, f4_mhz, "curve", t5e+1, t5_ms, f5_mhz, "linespec", "--h;--u;--l;--t;--a", "grid", "on", "x", temps, "y", freq, "colormap", "paruline", "subtitlex", imgname.c_str(), "ylabel", "[MHz]", "xlabel", "[ms]", "linespeca", "-a", ∅); imgname.clear(); imgname=scl::string_c(ƒ)+"-twv"+sfx+"-focus.pdf"; imgpath.clear(); imgpath="./srt/"+imgname; grafmat_dis(imgpath.c_str(), en, /*2**/en, tamp, "curve", t1e+1, t1_ms, f1_mhz, "curve", t2e+1, t2_ms, f2_mhz, "curve", t3e+1, t3_ms, f3_mhz, "curve", t4e+1, t4_ms, f4_mhz, "curve", t5e+1, t5_ms, f5_mhz, "linespec", "--h;--u;--l;--t;--p", /*"grid", "on",*/ "axmin", -t_ms/2/3 + t_ms/2, "axmax", t_ms/2/3 + t_ms/2, "aymin", -fe_mhz/2/3, "aymax", fe_mhz/2/3, "x", temps, "y", freq, "colormap", "paruline", /*"subtitlex", imgname.c_str(),*/ "ylabel", "[MHz]", "xlabel", "[ms]", "linespeca", "-a", "axis", "off", ∅); } else{ scltracerr(§, ƒ, ∅, "probleme d'allocation memoire pour twvd()\n"); } scltracefe(§, ƒ, ∅); return 0; } /* ƒ décorée par le 19-03-2025 23:07:52 */

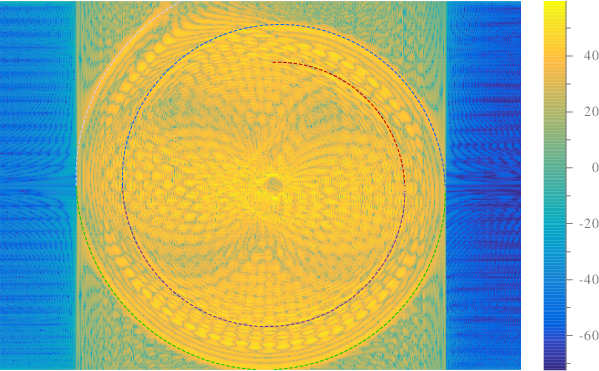

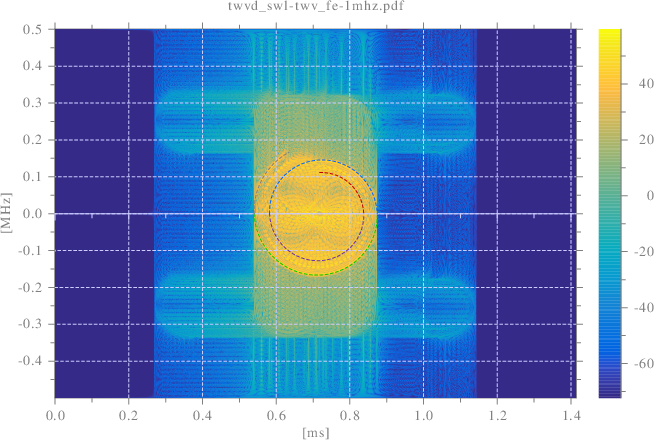

[>..\xpl\src\scl.swl.cpp.twvd_swl] scl-25.03 (gwin64) : 19-03-2025 23:07:52 <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<< << END OF DISLIN / VERSION 11.3.2 << << Date : 19.03.2025 Time : 23:07:52 Pageformat: DA4L << << Vectors : 5943 Warnings: 0 Fileformat: SVG << << Metafile: ./srt/twvd_swl_fe-1mhz.svg << <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<< en = 1414 te=0.000001 [s], fe=1000000.000000 <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<< << END OF DISLIN / VERSION 11.3.2 << << Date : 19.03.2025 Time : 23:07:52 Pageformat: DA4L << << Vectors : 4892 Warnings: 0 Fileformat: SVG << << Metafile: ./srt/twvd_swl-sig_fe-1mhz.svg << <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<< Nombre de TFD : 38 <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<< << END OF DISLIN / VERSION 11.3.2 << << Date : 19.03.2025 Time : 23:07:52 Pageformat: DA4L << << Vectors : 1414 Warnings: 0 Fileformat: SVG << << Metafile: ./srt/twvd_swl-spg_fe-1mhz.svg << <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<< Execution twvd() : 92.323021 [s] <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<< << END OF DISLIN / VERSION 11.3.2 << << Date : 19.03.2025 Time : 23:09:28 Pageformat: DA4L << << Vectors : 4071 Warnings: 0 Fileformat: PDF << << Metafile: ./srt/twvd_swl-twv_fe-1mhz.pdf << <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<< [<..\src\sclgraf.dis.c.vgrafmat_dis>] xlabel '[ms]' is not displayed (cf axis off) [<..\src\sclgraf.dis.c.vgrafmat_dis>] ylabel '[MHz]' is not displayed (cf axis off) <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<< << END OF DISLIN / VERSION 11.3.2 << << Date : 19.03.2025 Time : 23:09:28 Pageformat: DA4L << << Vectors : 2793 Warnings: 0 Fileformat: PDF << << Metafile: ./srt/twvd_swl-twv_fe-1mhz-focus.pdf << <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<< [<..\xpl\src\scl.swl.cpp.twvd_swl]
